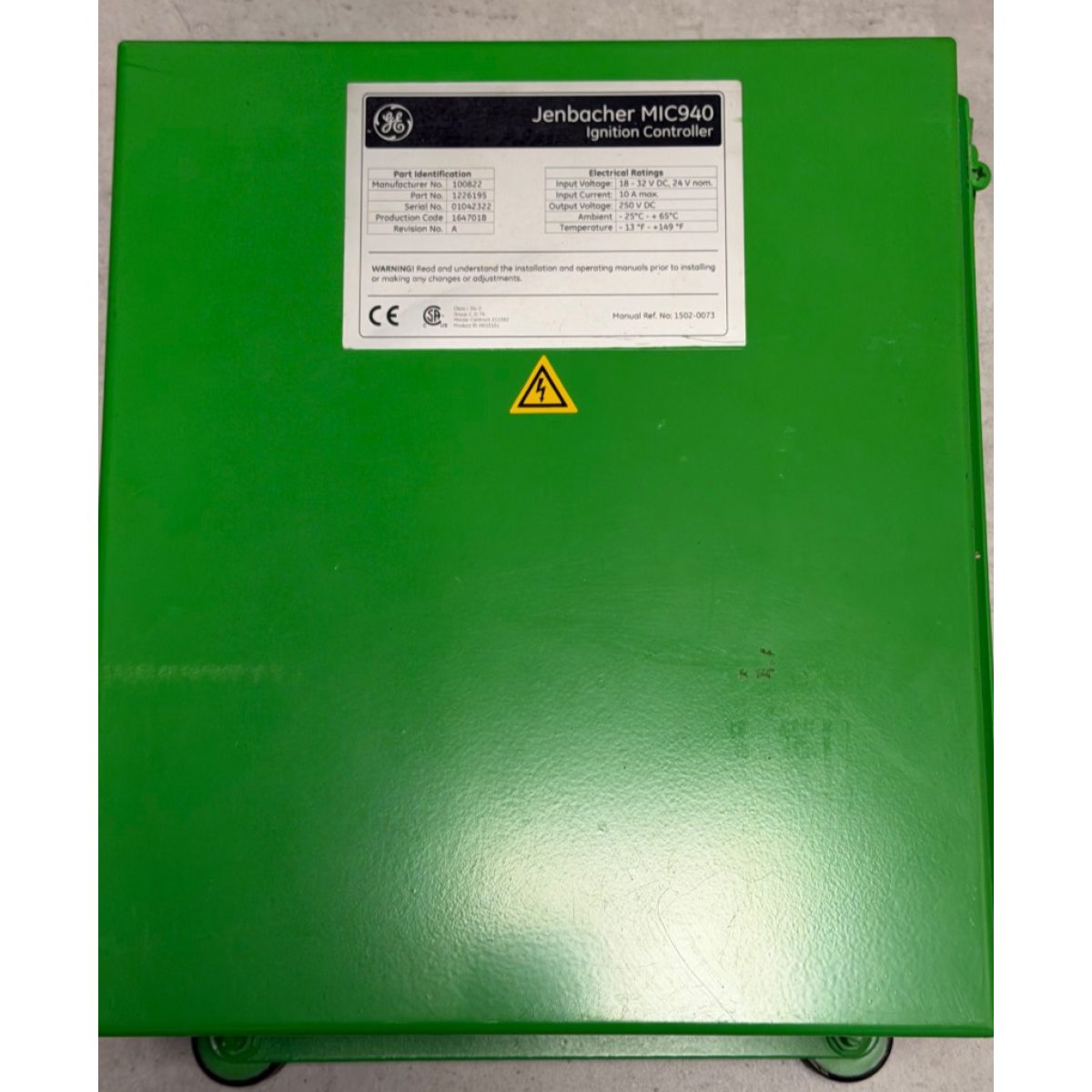

← Back Jenbacher 1226195 MIC940

MIC 940 New, unused, removed from a new engine

It is a high-energy unit designed to manage decentralized ignition systems (also known as MORIS MIC 940/950). It is primarily used on Jenbacher Type 4 and Type 6 engines.

Here are the details and technical specifications of the component:

Function: Management of multi-cylinder configurations with integrated functions for precise control of the ignition sequence, timing, and real-time operational monitoring.

Ignition energy: 500 mJ

Input voltage: 18-32 V DC (Nominal voltage of 24 V)

Maximum output voltage: 250 V DC

Operating temperature: -25°C to +65°C

Capacity: Designed to manage up to 12 cylinders (depending on the specific configuration)

Weight: 13 kg
