Turbines Kawasaki GT M7A GPB 60 Plus
Gas
5.800 kWe
Special Offer
Specifications
- Reference
- UPP-T0178
- Type
- Turbines
- Fuel Type
- Gas
- Year
- 2013
- Condition
- Used
- Rated Power
- 5.800 kWe
- Frequency
- 50 hz
- Operating hours
- 20.000
- Available quantity
- 1
Create a free account or log in to get started and see the price.
Description
Cogeneration Plant 5.8 MWProduct code: GD01

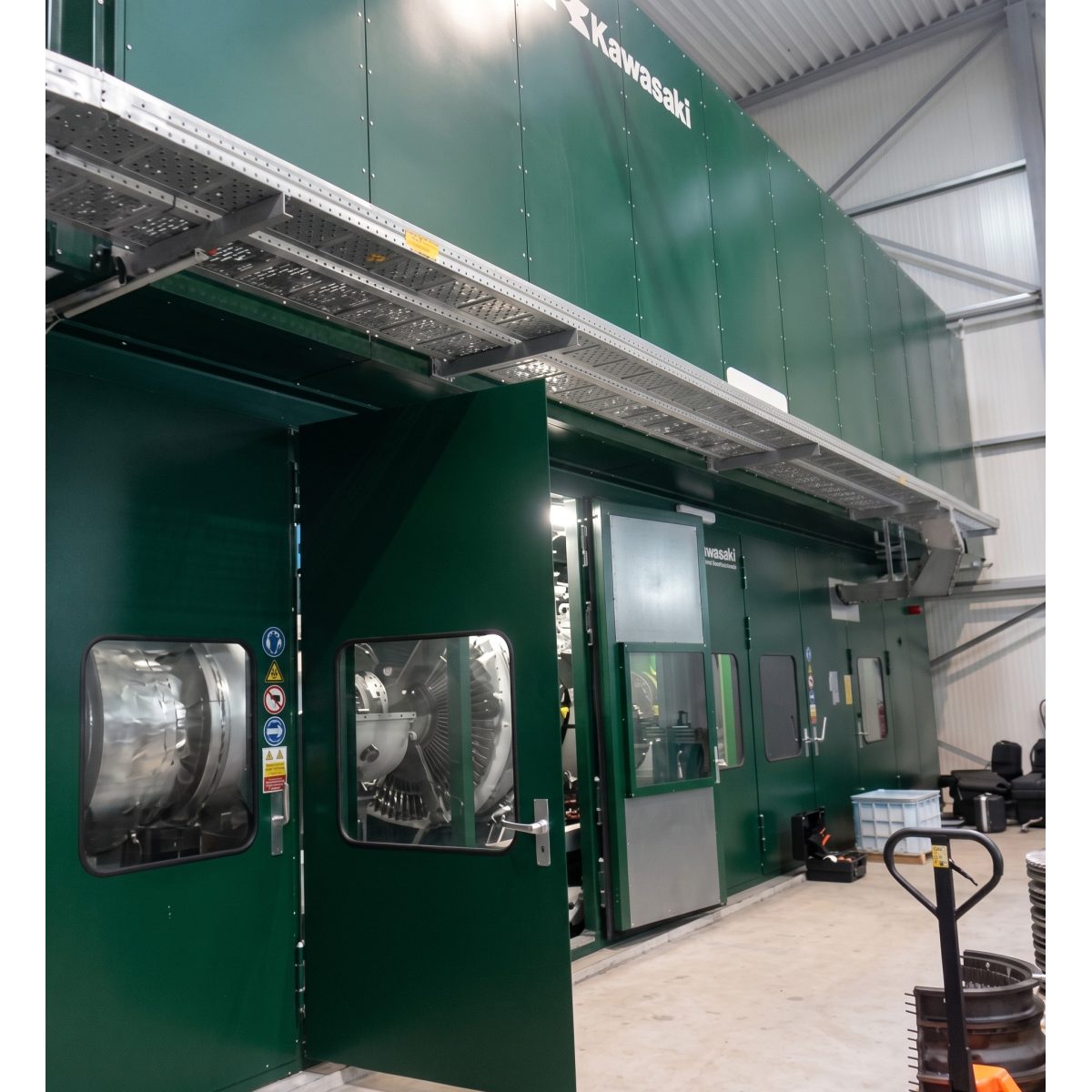

Gas turbine package, including:
• Gas turbine 5840 kW ISO dry, 6340 kW ISO plus
• Gearbox
• Generator 8 MVA, 6.3 kV, power factor 0.8
• Lubricating oil system
• Control system
• Gas fuel control and shut-off system
• Steam injection control system
• Air filter system
HRSG (Heat Recovery Steam Generator):
• HRSG 12.5 t/h, 19 bar(a), 400°C
• Complete heat exchangers
• Feedwater pump
• Auxiliary burner (100%)
• Steam bypass and attemperator
• Water analysis system
• Control valves
• Control system
Make-up water system:
• Reverse osmosis cartridges
• Pumps and valves
Exhaust stack:
• Main exhaust stack with silencer, h = 20 m
• Bypass exhaust stack (reduced section) including bypass damper

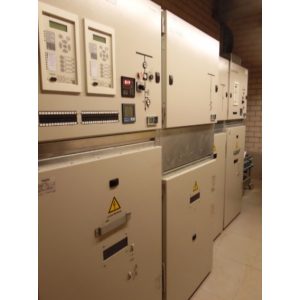

Switchgear:
• Step-up transformer 20 kV / 6.3 kV, 8000 kVA
• Auxiliary transformer 20 / 0.4 kV, 630 kVA
• Generator switchgear 1250 A
